roduct name: Angle adjuster
Series: D28 & D16
Technical parameter:
Angle adjuster--D28 series Angle adjuster--D16 series
► Angle adjuster--D28 series ► Angle adjuster--D16 series
► Be made of welding steel. ► Be made of welding steel.
► Hole diameter: 28mm ► Hole diameter: 16mm
► Adjustable Angle:0-225° ► Adjustable Angle:0-225°
Usages:
► For locating weldments which need to adjust and transvert angles frequently.
► For bolting clamping and positioning accessories on the upper side.
Direction for use:
► Positioning the underside on tables
► Adjusting angles according to scale
► Tightening the joint with hex wrench to fix it.

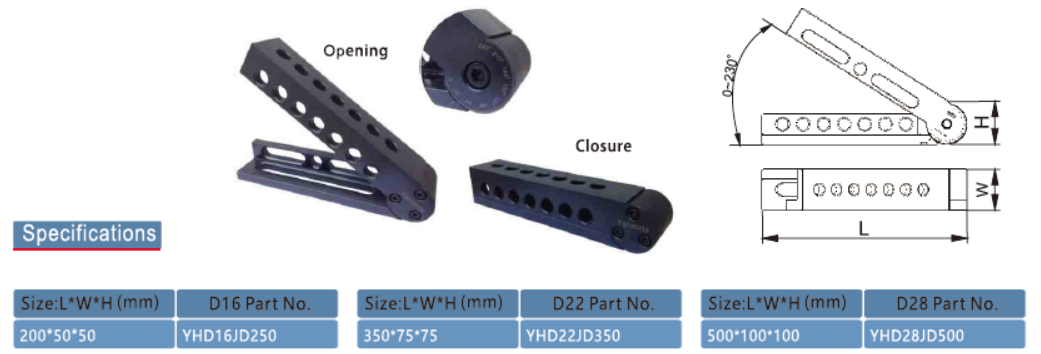

Specification as below:
|
