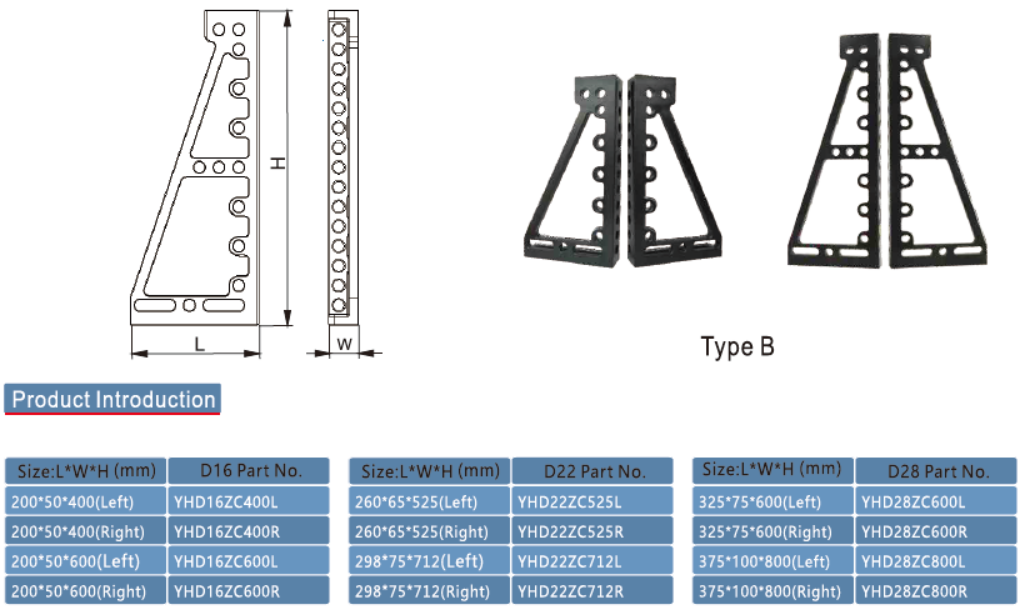

Product name: Supporting angle（Type B）

Series: D28 & D16

Technical parameter:
Supporting angle——D28 series                                       Supporting angle——D16 series
► Be made of welding steel / cast-iron.                                 ► Be made of welding steel / cast-iron.

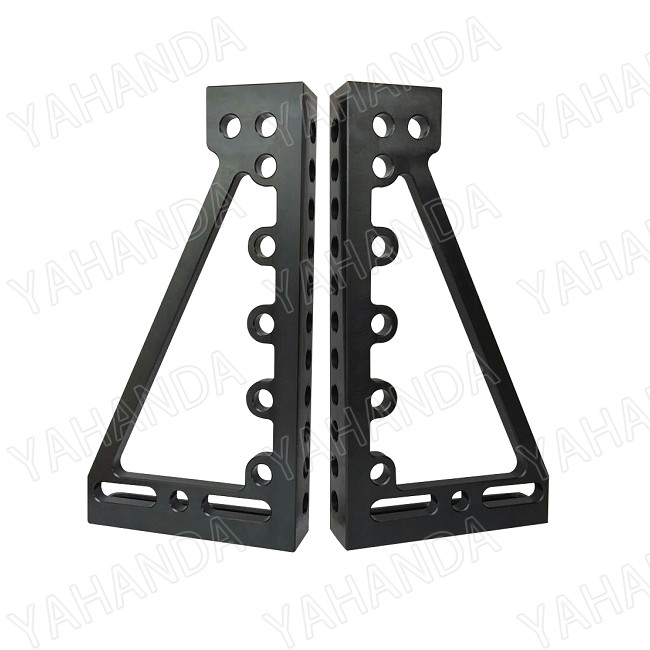

► Two parts: Left & Right                                                      ► Two parts: Left & Right
► Hole diameter: 28mm                                                         ► Hole diameter: 16mm
► Positioning verticality: 0.05-0.1mm                                    ►  Positioning verticality: 0.05-0.1mm

Usages:
► For surpporting and positioning larger workpieces.
► Clamps and locators can bolted on it by quick locking pins.
► Extending and connecting several tables when weldments are larger than table.
