Product name: 3D hydraulic lifting welding tables
Series: D28 & D16
Technical parameter:
3D hydraulic lifting welding table--D28 series 3D hydraulic lifting welding table--D16 series
►Be made of welding steel. ►Be made of welding steel.
►5precision machined woking surfaces. ► 5precision machined woking surfaces.
►Hole diameter: 28mm ►Hole diameter: 16mm
►Grid lines: 100mm*100mm ►Grid lines: 50mm*50m
►Hole pitch: 100mm ►Hole pitch: 50mm
►Material thickness: approx.23mm ►Material thickness: approx.14mm
►Be reinforced on the underneath side by ribs. ►Be reinforced on the underneath side by ribs.
Composed by traditional hydraulic lift and 3D flexible wedling table.
Due to big bearing capacity(800kg-2000kg),stable performance,adjustable height and with safety device,
it widely used for welding situations which require changing height.Height are controlled by Electric pedal switch.

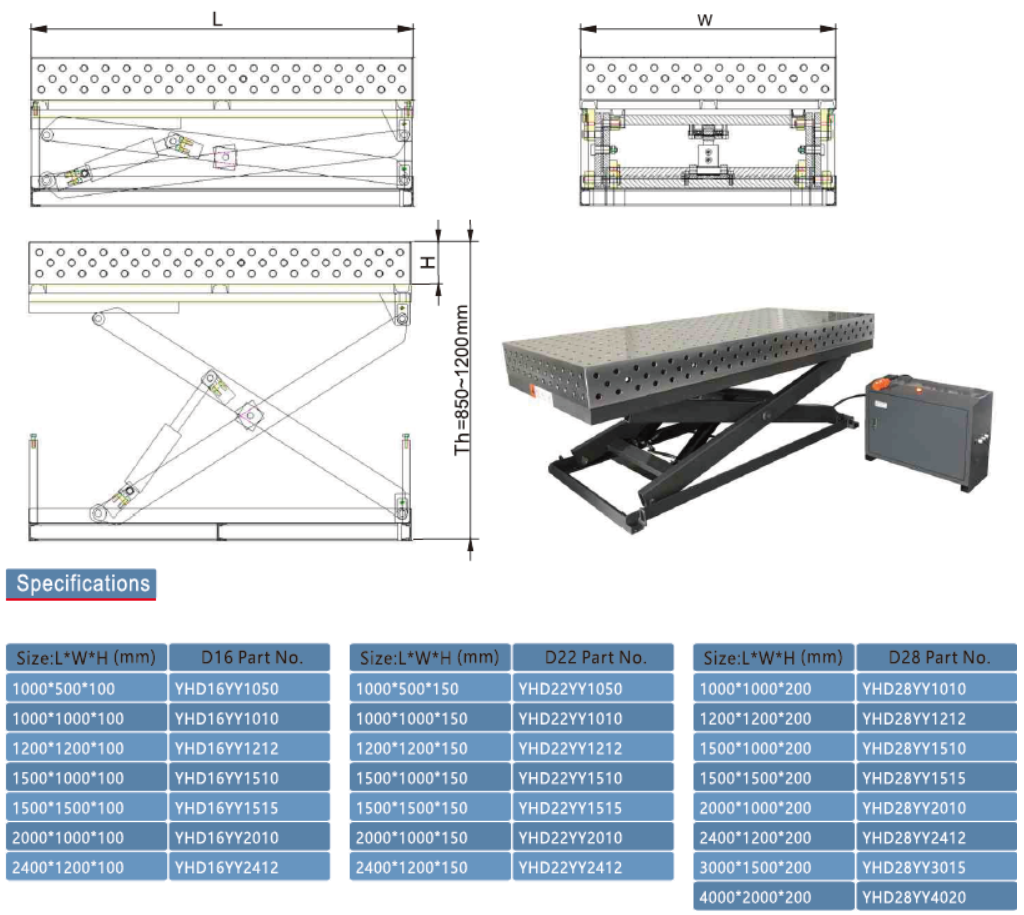

Specification as below:
|
