Product name: 3D welding table with rail base
Series: D28 & D16
Technical parameter:
3D welding table with rail base--D28 series 3D welding table with rail base--D16 series
►Be made of welding steel. ► Be made of welding steel.
►5 precision machined working surfaces. ► 5 precision machined working surfaces.
►Hole diameter: 28mm ► Hole diameter: 16mm
►Grid lines: 100mm*100mm ► Grid lines: 50mm*50mm
►Hole pitch: 100mm ► Hole pitch: 50mm
►Material thickness: approx.23mm ► Material thickness: approx.14mm
►Be reinforced on the underneath side by ribs. ► Be reinforced on the underneath side by ribs.
Mainly usde for clamping and welding of big steel constructions and large-scale projects, such as pylons,
steel structure stage,steel structure advertising frame, swing arm of jib crane, etc.
The length of rail base depends on weldment, and in general, it is about 1000mm longer than weldment.
Installation and regulation of table position have lifting type and sliding type,and can be customised.
Rails anchored in the grond and foundations at least 150mm high. Tables are bolted on rails by quick locking pins.
It has been widely used for the position and size are adjustable.

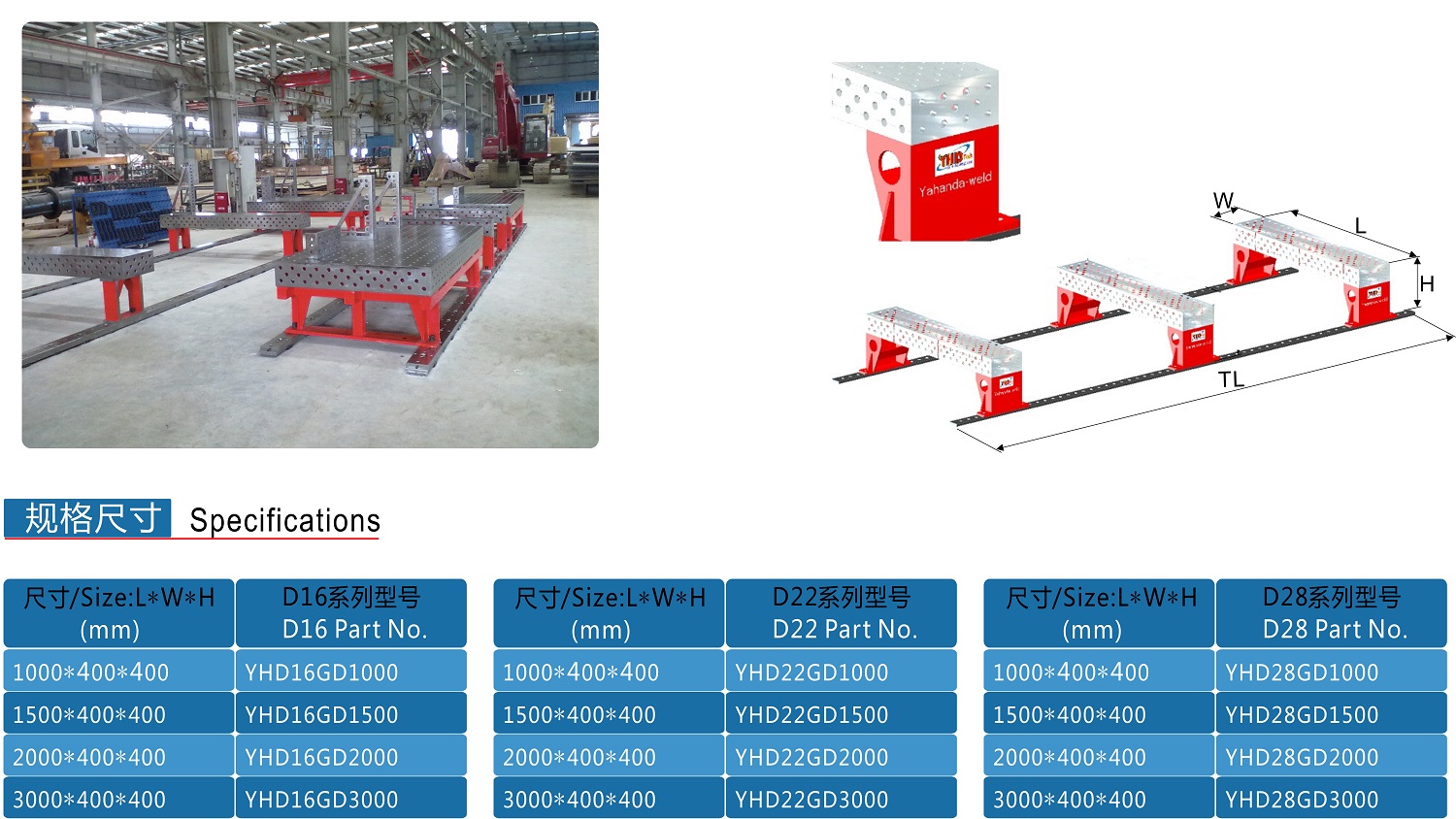

Specification as below:
|
