Product name: 2D Octagonal welding table
Series: D28 & D16
Technical parameter:
2D Octagonal welding table--D28 series 2D Octagonal welding table--D16 series
►Be made of welding steel. ►Be made of welding steel.
►1 precision machined working surface. ►1 precision machined working surface.
►Hole diameter: 28mm ►Hole diameter: 16mm
►Grid lines: 100mm*100mm ►Grid lines: 50mm*50mm
►Hole pitch: 100mm ►Hole pitch: 50mm
►Material thickness: approx.23mm ►Material thickness: approx.14mm
►Be reinforced on the underneath side by ribs. ►Be reinforced on the underneath side by ribs.
►Mainly matched with rotating and tilting machine. ►Mainly matched with rotating and tilting machine.

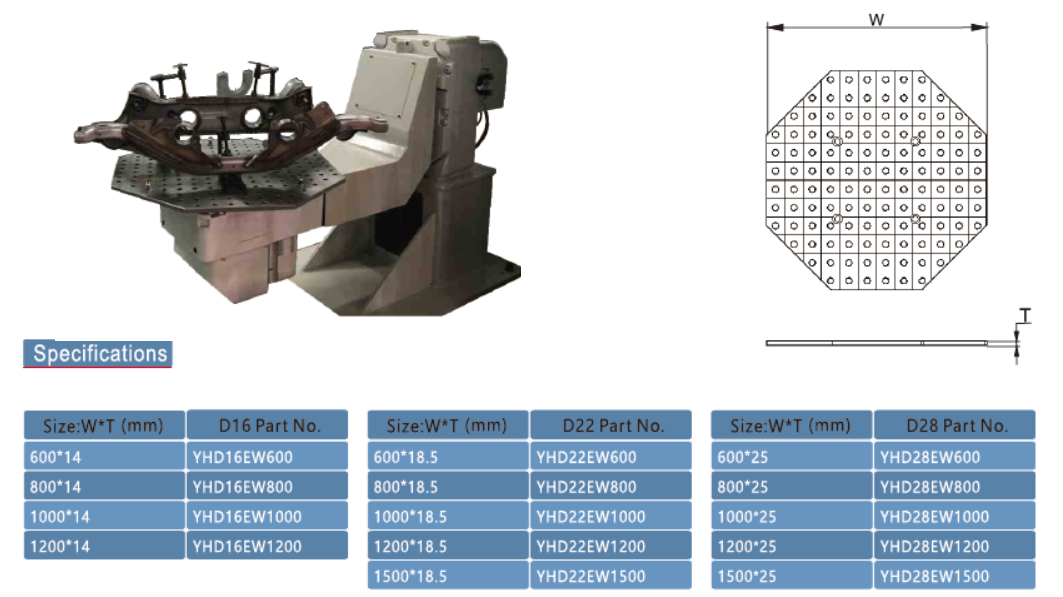

Specification as below:
|
