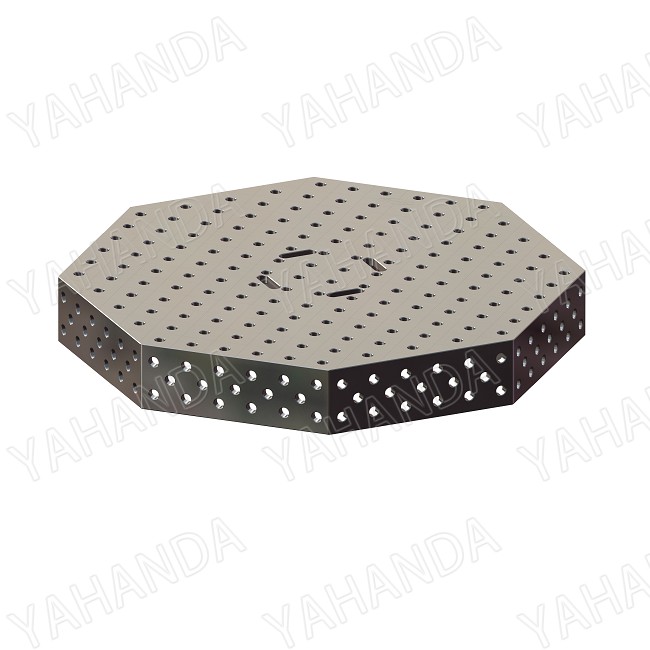

Product name: 3D Octagonal welding table
Series: D28 & D16
Technical parameter:
3D Octagonal table--D28 series 3D Octagonal table--D16 series
►Be made of welding steel. ► Be made of welding steel.
►9 precision machined working surfaces ►9 precision machined working surfaces
►Hole diameter: 28mm ► Hole diameter: 16mm
►Grid lines: 100mm*100mm ► Grid lines: 50mm*50m
►Hole pitch: 100mm ► Hole pitch: 50mm
►Material thickness: approx.23mm ► Material thickness: approx.14mm
►Be reinforced on the underneath side by ribs. ► Be reinforced on the underneath side by ribs.
Mainly matched with rotating and tilting machine.Several tables can be connected together and extended
by Corner module and U-shape cube case for large welments.

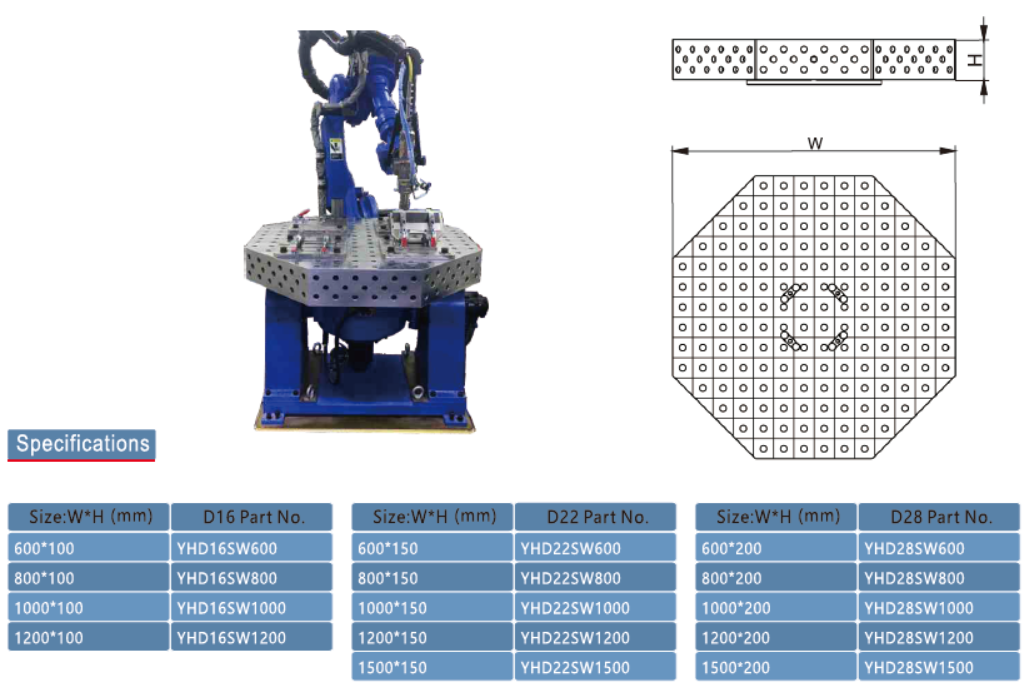

Specification as below:
|
